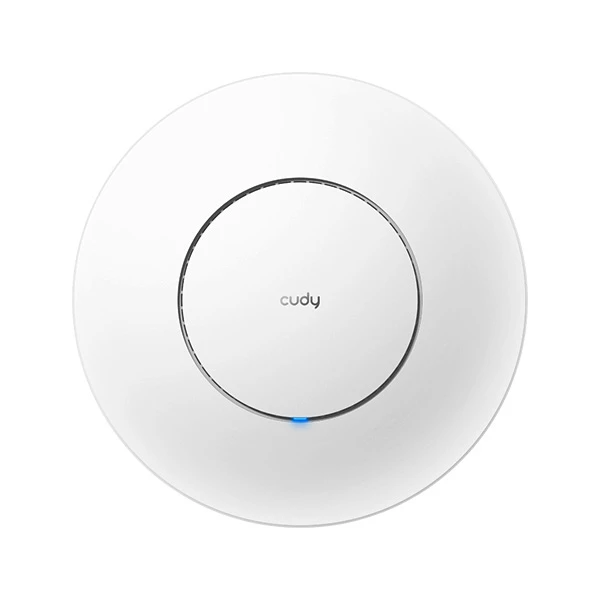

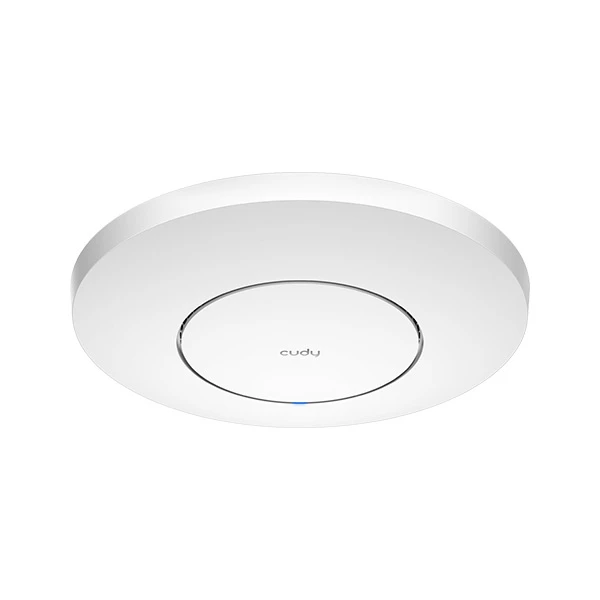

Cudy AP1300-Indoor AC1200 Dual Band Indoor Ceiling Mount Gigabit Wi-Fi Access Po

General Features:

• Model: Cudy AP1300-Indoor
• Type: Ceiling Mount Wireless Access Point (Indoor Use)
• WiFi Standard: IEEE 802.11ac/a/n/g/b (Wi-Fi 5, AC1200)
• Processor: Dual-Core CPU (Efficient network performance)
• Antennas: Internal High-Gain Antennas (Optimized for ceiling-mounted coverage)
• MU-MIMO: Yes (Allows multiple devices to connect efficiently)

Wireless Features:

• WiFi Speed:
  • 2.4GHz: Up to 300 Mbps
  • 5GHz: Up to 867 Mbps
  • Total Speed: Up to 1200 Mbps (AC1200)
• Frequency Band: Dual-band (2.4GHz & 5GHz)
• WiFi Modes:
  • Access Point (AP) Mode
  • Repeater Mode
  • Mesh Mode (When paired with compatible devices)
• Beamforming: Yes (Enhances signal focus and range)
• Seamless Roaming: Yes (Works with Cudy Mesh systems)
• Guest Network: Yes

Ports & Connectivity:

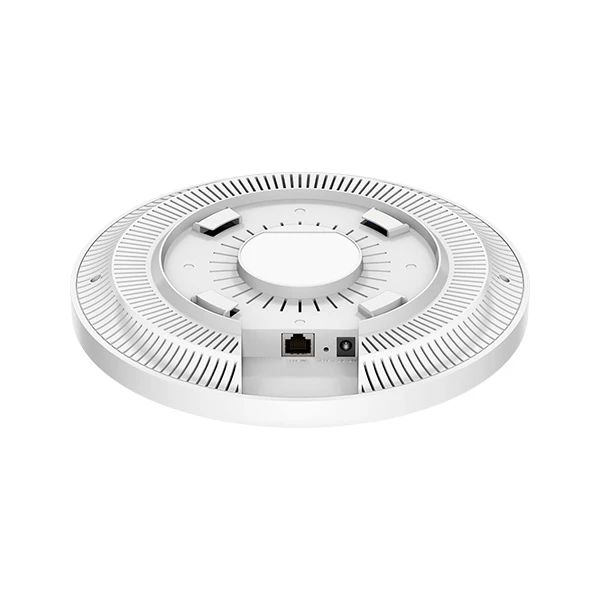

• Ethernet Ports: 1 × Gigabit Ethernet Port (1000 Mbps, PoE Supported)
• PoE Support: Yes (Power over Ethernet, 802.3af/at)
• Wired Speed: Gigabit Ethernet (1000 Mbps)
• USB Port: No

Security Features:

• Encryption: WPA3, WPA2-PSK, WPA/WPA2 Mixed Mode
• VLAN Support: Yes (For network segmentation)
• Parental Controls: Yes (Website filtering, time scheduling)
• Firewall: SPI Firewall
• VPN Support: PPTP, L2TP, OpenVPN, WireGuard VPN

Additional Features:

• App Control: Cudy App & Web UI for easy management
• QoS (Quality of Service): Yes (Traffic prioritization)
• IPv6 Support: Yes
• Cloud Management: Yes (Manage remotely via the Cudy Cloud)

Physical Specifications:

• Mounting Type: Ceiling or Wall Mount
• Dimensions: Approx. 176 × 176 × 40 mm
• Weight: Lightweight Design
• Power Supply:
  • PoE (Power over Ethernet) 48V/0.32A (Recommended)
  • Optional 12V DC Adapter (Not Included)

Package Includes:

• 1 × Cudy AP1300 Ceiling Mount Access Point
• 1 × Mounting Kit
• 1 × Quick Installation Guide
